This post will describe how to connect your SCCM infrastructure to the Desktop Analytics cloud-based service. We will show how to create your workspace and connect it to an SCCM 1906 server. In the latest SCCM 1906 version, some new features were added to Desktop Analytics :

From Microsoft :

  • You can now get more detailed insights for your desktop applications including line-of-business apps.
  • Use the DesktopAnalyticsLogsCollector.ps1 tool from the Configuration Manager install directory to help troubleshoot Desktop Analytics. It runs some basic troubleshooting steps and collects the relevant logs into a single working directory.
Important Info

Desktop Analytics is still in a Preview phase.

Why use SCCM Desktop Analytics

Desktop Analytics is a standalone cloud-based service that connects with SCCM. By using Desktop Analytics service, you can easily find interesting information about your Windows clients.

When connected together, Desktop Analytics and SCCM can :

  • Inventory running apps on your clients
  • Assess app compatibility
  • Identify compatibility issues
  • Receive mitigation suggestions based on cloud-enabled data insights
  • Create pilot groups that represent your organization based on application and drivers
  • Use those pilot group to Deploy Windows 10

The main advantage is that it can help an organization stay current with Windows 10 by helping you assess problems from drivers and application compatibility. There’s really no reason not to use Desktop Analytics if you have all the requirements.

Windows Analytics vs Desktop Analytics

Desktop Analytics is a “new version” of Windows Analytics. It has all the same features plus it can be connected with SCCM.

The Desktop Analytics service includes:

  • Upgrade Readiness
  • Update Compliance
  • Device Health
  • Richer app and Office macro insights
  • Easier integration with SCCM

Prerequisites Before using Desktop Analytics and SCCM integration

Before integrating SCCM and Desktop analytics :

  • Ensure you are using SCCM 1902 with update rollup (4500571) or later. For this post, we will use SCCM 1906
  • An account with Full Administrator role in SCCM
  • Devices must run Windows 7, Windows 8.1, or Windows 10
  • Ensure the SCCM clients are installed with the latest version. The client agent version should be 5.00.8790.1025 and above. (which is 1902)
  • Clients must be able to connect to the Microsoft public cloud
  • An Azure subscription, using an account with Global Admin permission
  • Windows 10 Enterprise E3 or E5; or Microsoft 365 F1, E3, or E5
  • Windows 10 Education A3 or A5; or Microsoft 365 A3 or A5
  • Windows VDA E3 or E5

Beyond the cost of license subscriptions, there’s no additional cost for using Desktop Analytics.

Create a Desktop Analytics workspace in Azure

Let’s start by creating a Desktop Analytics workspace in Azure portal :

  • Log to Desktop Analytics portal (see needed permission above)
  • If you are not redirected to the Desktop Analytics page, click on it on the left menu
  • On Welcome to Desktop Analytics screen, click Start
  • On the Accept service agreement screen, click Next
  • Click the slider to Yes, Click Next
  • Move the Allow the Desktop Analytics to manage directory roles on your behalf slider to the right (Yes)
  • Under Workspace Owners, add desired users who will have access to your Desktop Analytics portal
  • Click Next
  • On Set up your workspace page, select your Azure Subscription. You can add a new workspace or use an existing workspace. We will create a new workspace
  • Click Add Workspace and click Set as Desktop Analytics workspace
  • On the Confirm and grant access box, click Continue, then Accept the permission requested
  • When you successfully add the workspace, you will find the following details. Validate the Workspace Name, Workspace ID and Commercial ID Key. Click Next

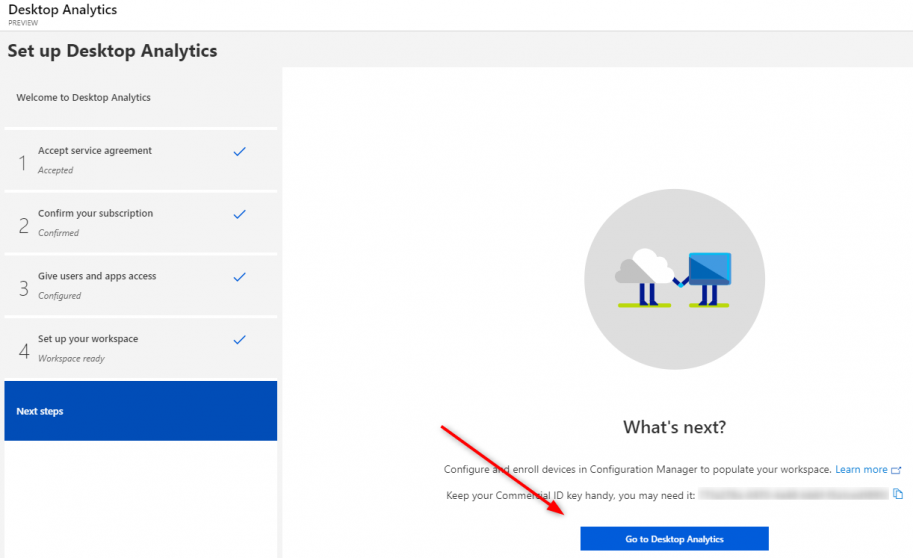

  • Desktop Analytics is now configured. Click Go to Desktop Analytics
  • On the Desktop Analytics home screen, you are warned that It could take up to 72 hours to process data. Be patient, you’ll also see a warning: Welcome to Desktop Analytics! You will need to enroll devices in Configuration Manager to populate your workspace. This is what we’ll be doing in the next steps.
  • Under the hood, if you log into your Azure Portal and go in the Log Analytics workspace, you’ll see that your workspace has been created

Connect SCCM with Desktop Analytics

It’s now time to connect SCCM with the newly created Desktop Analytics workspace.

  • Open the SCCM console
  • Navigate to Administration / Cloud Services / Azure Services.
  • Right-click Azure Services and click Configure Azure Services
sccm desktop analytics
  • Set a name and select Desktop Analytics, Click Next
sccm desktop analytics
  • Select the Azure environment and click Browse to select the associated Web App. On the Server app window, click Create
sccm desktop analytics
  • Specify an Application name
  • The HomePage URL and App ID URI should be set to https://ConfigMgrService. If you get an error that Another object with the same value for property identifierUris already exists, this is probably because you’ve already configured another Azure service with that name. Set a unique name and click Sign-In
sccm desktop analytics
  • Enter your Azure Credentials and ensure that the login is successful, click OK to close the window
sccm desktop analytics
  • Click Next
  • On the Diagnostic Data page, make a note of Commercial ID
  • Select the desired Windows 10 diagnostic Data level. We will select Enhanced (Limited)
  • Select Enable to Allow Device Name in Diagnostic Data, click Next
sccm desktop analytics
  • In the Available Functionality screen, click Next
sccm desktop analytics
  • Select the SCCM collection that will target Desktop Analytic onboarding by clicking the Add button. You’ll be able to add more collection later. Since this is a lab environment we selected All Systems collection. Choose a Pilot collection to start on your site.
  • The Target collection includes all devices that SCCM configures with your commercial ID and diagnostic data settings.
  • Once selected, click Next
sccm desktop analytics
  • On the Summary screen, verify all settings, Click Next and Close
sccm desktop analytics

Verification

Once completed you can verify that the connection has been made

  • Go to Administration / Cloud Services / Azure Services
  • You’ll see that the Desktop Analytics service is listed
sccm desktop analytics

To monitor the enrollment status of devices :

  • Go to Software Library / Analytics Servicing Connection Health
sccm desktop analytics
  • This Dashboard shows valuable data to help you. Microsoft has also release good documentation about how to troubleshoot issues
  • SCCM 1906 and later also have a PowerShell script DesktopAnalyticsLogsCollector.ps1 from the SCCM install directory\cd.latest\SMSSETUP\TOOLS\DesktopAnalyticsLogsCollector) to help troubleshoot Desktop Analytics.

Enroll Devices

Once that your service is connected, the work is just beginning, you need to enroll the most device as possible to gather valuable information.

Depending on the Operating System, you need to make sure that they have all the required updates.

For Enrollment, you don’t need to install any client. Desktop Analytics relies on diagnostic data sent depending on the configured settings.

SCCM will use the collection you specified in the previous steps to configure your devices.

Create Deployment Plans

Once your devices are enrolled you need to create Deployment Plans. Deployment plans are used to simulate a Windows deployment and to :

  • Automatically recommend which devices to include in pilots
  • Identify compatibility issues and suggest mitigations
  • Assess the health of the deployment before, during, and after updates
  • Track the progress of your deployment

Unfortunately, these plans are not created in SCCM. You need to create them in your Desktop Analytic portal and they will be synced in SCCM. You’ll then use SCCM to deploy the plans to collections.

By clicking on the Deployment Plan, you’ll be able to see the results in the SCCM Console

To see all status meaning, see Microsoft Documentation.

Log file reference – Configuration Manager | Microsoft Docs

Desktop Analytics Logs Files

Use the following log files to help troubleshoot issues.

The log files on the service connection point are in the following directory: %ProgramFiles%\Configuration Manager\Logs\M365A.

The log files on the Configuration Manager client are in the usual C:\Windows\CCM\Logs directory.

LogDescriptionComputer with log file
M365ADeploymentPlanWorker.logInformation about deployment plan sync from Desktop Analytics cloud service to on-premises Configuration ManagerService connection point
M365ADeviceHealthWorker.logInformation about device health upload from Configuration Manager to Microsoft cloudService connection point
M365AHandler.logInformation about the Desktop Analytics settings policyClient
M365AUploadWorker.logInformation about collection and device upload from Configuration Manager to Microsoft cloudService connection point
SmsAdminUI.logInformation about Configuration Manager console activity, like configuring the Azure cloud servicesService connection point

Desktop Analytics is still in the preview phase and it’s possible that process change during the development phase. We’ll try to keep this post as current as possible as the product hits General Availability.

Reporting

We build 2 SSRS reports that will help you using Desktop Analytics. For more details, click here.
