SCCM 1806 bring a new exciting feature that will change the design and planning of SCCM sites. Before 1806, if you had a remote site with only 1 distribution point and wanted to do PXE boot and imaging, you’d have to use a server OS because Windows Deployment Service (WDS) was required. You could also use third party solution with additional cost. Now you can use a client OS (Windows 7,8,10) to respond to PXE request without WDS. This is a game changer as you could basically remove any server OS from remote sites if they were just acting as a distribution point.

SCCM PXE Without WDS Limitation

Note that there’s 1 limitation with SCCM PXE Without WDS. It doesn’t support Multicast, if you need multicast, you need to stick with Windows Deployment Service (WDS).

Existing Distribution Point

You can use the Enable a PXE responder without Windows Deployment Service option on a server OS that that’s already PXE-enabled, SCCM will suspend the Windows Deployment (WDS) Service and enable the new ConfigMgr PXE Responder Service. If you later disable this option but still Enable PXE support for clients, then the distribution point enables Windows Deployment Service (WDS) again.

It’s pretty simple, all you have to do is enable the new Enable a PXE responder without Windows Deployment Service in the Distribution Point Properties option :

  • In the SCCM Console
  • Go to Administration \ Site Configuration \ Servers and Site System Roles
  • Select your Distribution Point and right-click Distribution Point in the roles, select Properties

SCCM PXE Without WDS

  • In the PXE tab, select Enable a PXE responder without Windows Deployment Service

SCCM PXE Without WDS

  • Select Yes

SCCM PXE Without WDS

  • Click Apply and Ok to close the Distribution Point Properties

Before :

  • WDS RemoteInstall folder
  • Windows Deployment Services Server running

SCCM PXE Without WDS

After :

  • After a couple of minutes, the WDS Service will stop

SCCM PXE Without WDS

  • The new ConfigMgr PXE Responder Service is created

SCCM PXE Without WDS

The existing distribution point is now ready to respond to request without WDS ! For more verification steps, jump to the Verification section of this post.

New Windows 10 Distribution Point

We will now add the PXE Service on a new Windows 10 DP which is the real value of this option.

Like any other distribution point installation, the prerequisites are the same. Review our post to know what are the requirement before continuing reading this post. (On Windows 10, adding the computer account as Administrator and open needed Firewall port should be enough).

  • In the SCCM Console
  • Go to Administration \ Site Configuration \ Servers and Site System Roles
  • Right-click Servers and Site System Roles and select Create Site System Server

SCCM PXE Without WDS

  • On the General Pane, enter the FQDN of your site server, click Next

SCCM PXE Without WDS

  • On the Proxy pane, click Next

SCCM PXE Without WDS

  • On the Role Selection, select Distribution Point

SCCM PXE Without WDS

  • In Distribution Point, select Install and Configure IIS and keep all other options default

SCCM PXE Without WDS

  • Enter the desired drive settings

SCCM PXE Without WDS

  • Do not enable the Pull Distribution Point option

SCCM PXE Without WDS

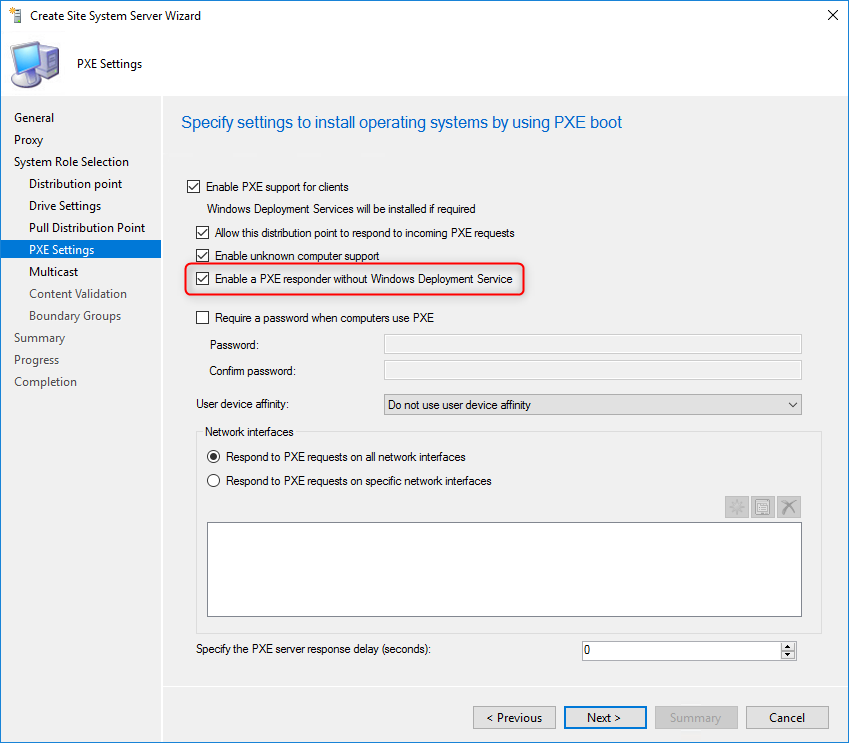

  • In the PXE Settings pane, this is where the magic happens
    • All four checkboxes, the important one is Enable a PXE responder without Windows Deployment Service
    • If desired you can require a password

SCCM PXE Without WDS

  • The Multicast options are greyed out since it’s not supported on a client OS as stated in our introduction

SCCM PXE Without WDS

  • Enable Content Validation, click Next

SCCM PXE Without WDS

  • Add the desired boundary group, usually, you’ll add the boundary group of your remote site

SCCM PXE Without WDS

  • Review your options and complete the wizard

SCCM PXE Without WDS

Distribute your boot Image and Content

The last step you need to do is to distribute the Boot Image and needed content for you Task Sequence to run on the Distribution Point.

  • Go to Software Library \ Operating Systems \ Boot Images
  • Right-click your Boot Image and select Distribute Content
  • Select the newly created Distribution Point from your DP List.

SCCM PXE Without WDS

Verification

Let see what happen under the hood on our Distribution Point.

  • In the SCCM Console
  • In Monitoring \ Distribution Status \ Distribution Point Configuration Status
  • We can see that our Windows 10 Distribution Point is enabled for PXE

SCCM PXE Without WDS

  • On the Primary Site Server, log to check is Distmgr.log which will show detail about our Distribution Point Installation with PXE

SCCM PXE Without WDS  SCCM PXE Without WDS

  • Locally on the Distribution Point the SMSPXE.log is created and mentioned also that SCCM PXE is enabled

SCCM PXE Without WDS

  • In the Services window, the new ConfigMgr PXE Responder Service is created and running

SCCM PXE Without WDS

  • A new executable is now responsible to respond to Pxe request – SCCMPxe.exe and there’s no RemoteInstall folder. In case you are wondering, the Boot Images and content are in the SCCMContentLib folder

SCCM PXE Without WDS

Now lets PXE boot a computer :

  • Booting….

  • Downloading…

  • Bingo !

  • The PXE request log will be locally on the Distribution. In our case C:\SMS_DP$\bin\sms\Smspxe.log
  • Keep also in mind that iphelpers/dhcp boot option (hint: use iphelpers not boot option!) are still required if you need to redirect traffic from other subnets.

This feature alone is a good reason to upgrade to SCCM 1806 as soon as possible. Great work to Kerwin and his team!
